1.1 电力载波PLC模组应用方案
整机产品设计端，L，N 线上的安规防护设计，PLC 信号耦合设计，强烈建议参考下面的线路图，减少因浪涌等原因导致PLC模组损坏
说明:

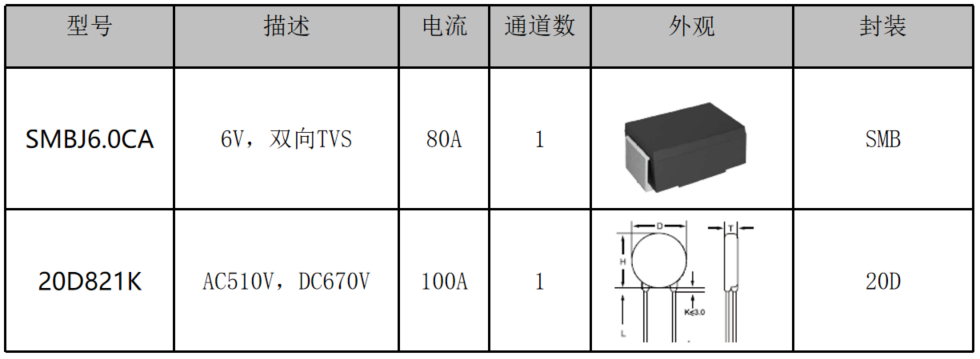

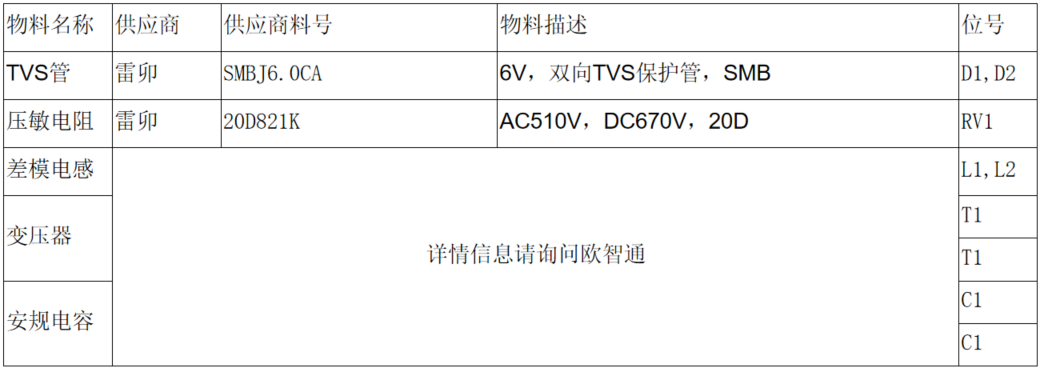

图中初次级双向TVS保护管（D1/D2）为必选；
L/N线上PLC信号接入点需要在压敏电阻（RV1）后面;
PLC信号后面需串接两个差模电感（L1/L2）与整机电源做隔离;
T1变压器为1:1变压器；
C1安规电容。
