10.1 耳机接口静电保护方案

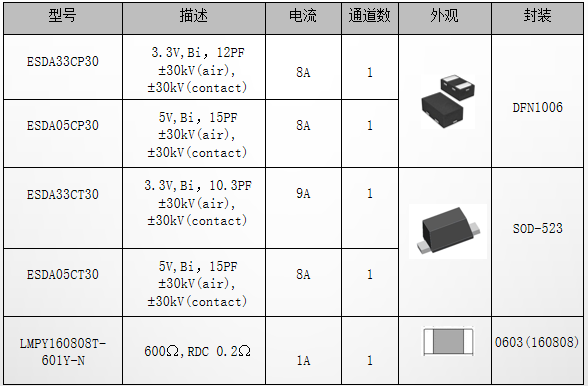

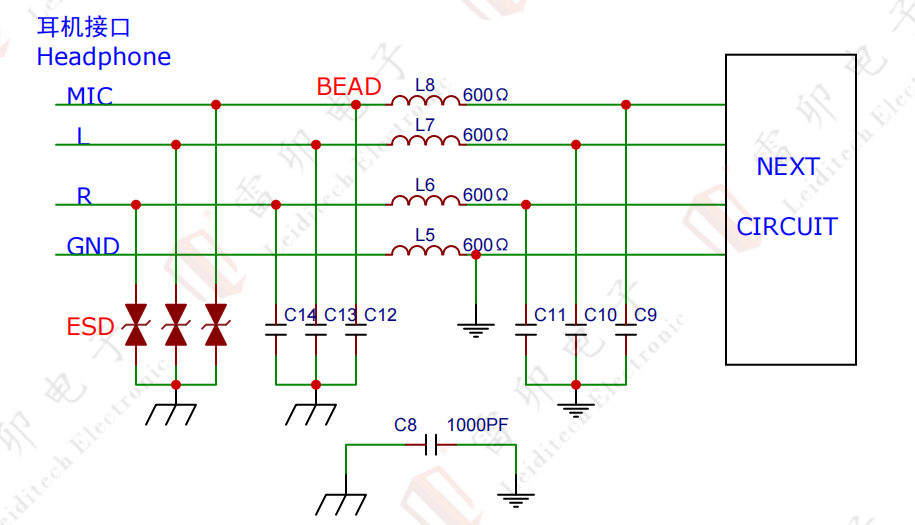

方案优点：左右声道和MIC信号线上放ESD二极管保护后级芯片，再根据情况增加磁珠滤出杂讯，可以选择3.3V或5V ESD 二极管，可以保证信号完整性的同时，通过静电测试。 满足：IEC61000-4-2，接触放电 30kV，空气放电30kV，ISO10605-2等级4
