By LEIDITECH | 13 June 2023 | 0 评论

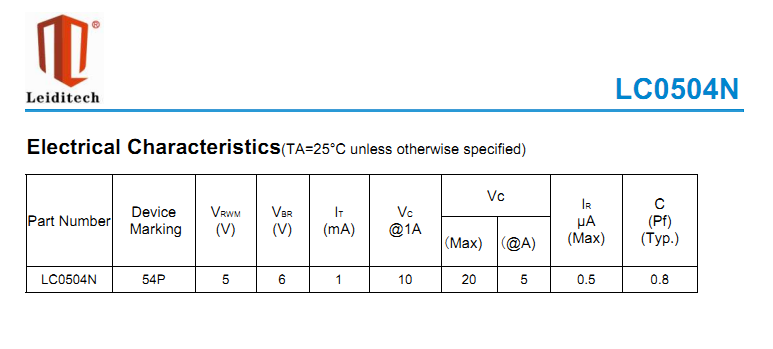

雷卯电子推出RCLAMP0504N 完全替代料，ULC0504N，帮助客户国产化
客户需要保护4条I/O 高速信号线和Vbus 电源线，选用DFN2020-6封装的ESD可以紧凑保护，实现小体积，多线路的保护。
|
Unidirectional Channels |
4 |
|
Voltage - Reverse Standoff (Typ) |
5V (Max) |
|
Voltage - Breakdown (Min) |
6V |
|
Voltage - Clamping (Max) @ Ipp |
17.5V |
|
Current - Peak Pulse (10/1000µs) |
5A (8/20µs) |
|
Power - Peak Pulse |
300W |
|
Power Line Protection |
Yes |
|
Applications |
General Purpose |
|
Capacitance @ Frequency |
3pF @ 1MHz |
|
Operating Temperature |
-55°C ~ 125°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Supplier Device Package |
SLP2020P6 (2x2) |
